Name: Electronic CO/CO2 Detector
Brand: Downunder Pilot Shop
SKU: electronic-co-co2-detector
Availability: InStock

Home Store

Electronic CO/CO2 Detector

When safety comes first, you need a reliable carbon monoxide detector in any piston-powered aircarft.

This CO and CO2 detector has been designed by engineers who specialise in gas detection. With a 7 year useful lifespan and USB-C rechargable battery, this device is first in class for compact CO and CO2 detection.

Customisable alarm levels - set at what gas concentrations alarms become audible.
Temperature and Humidity sesnors.
Mounting dock/cradle
Rechargeable

Two Models:

JAQ-01: Detects both CO2 & CO as well as Temperature & humidity
JAQ-03: Detects only CO as well as Temperature & humidity

Model Specifications:

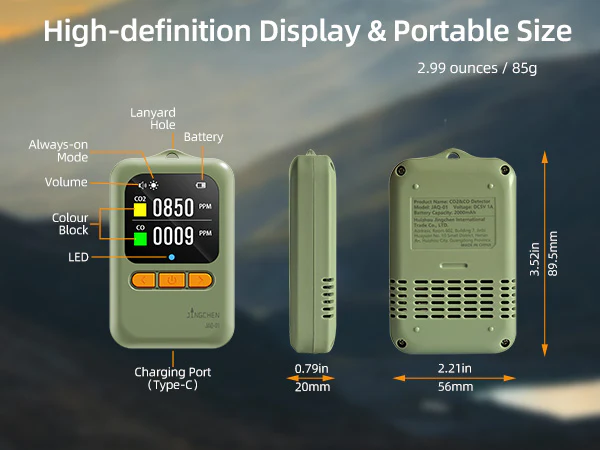

Size: 56 x 88.5 x 20mm (without holder)
Weight: 85g (without holder)
Case Material: ABS Plastic
Operating Temperature Range: -10°C ~ 50°C
Operating Humidity Range: 10% ~ 95% Relative Humidity
Warranty: 2 Years

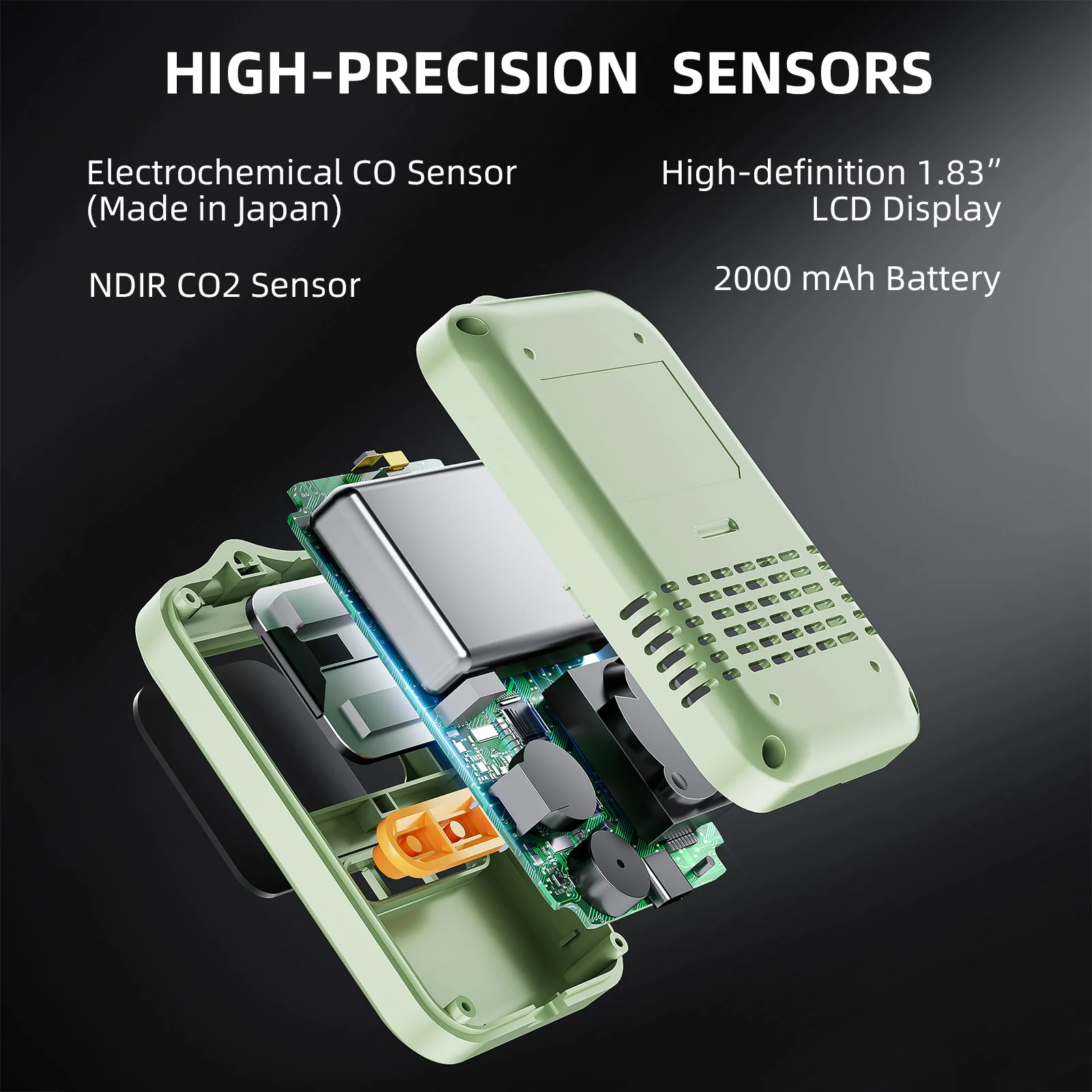

CO2 Sensor: NDIR (Only on JAQ-01)
CO2 Measurement Range: 400 ~ 5000 ppm
CO2 Accuracy: +/- 50ppm

CO Sensor: Electrochemical (Made in Japan)
Sesnor meets standard: UL2034
CO Measurement Range: 0 ~ 1000 ppm
CO Accuracy: +/- 15%

Temperature / Humidity Sensor: MEMS
Temperature Measurement Range: -40°C ~ +125°C
Temperature Accuracy: +/- 1°C

Temperature / Humidity Sensor: MEMS
Humidity Measurement Range: 0 ~ 100%RM
Humidity Accuracy: +/- 5%

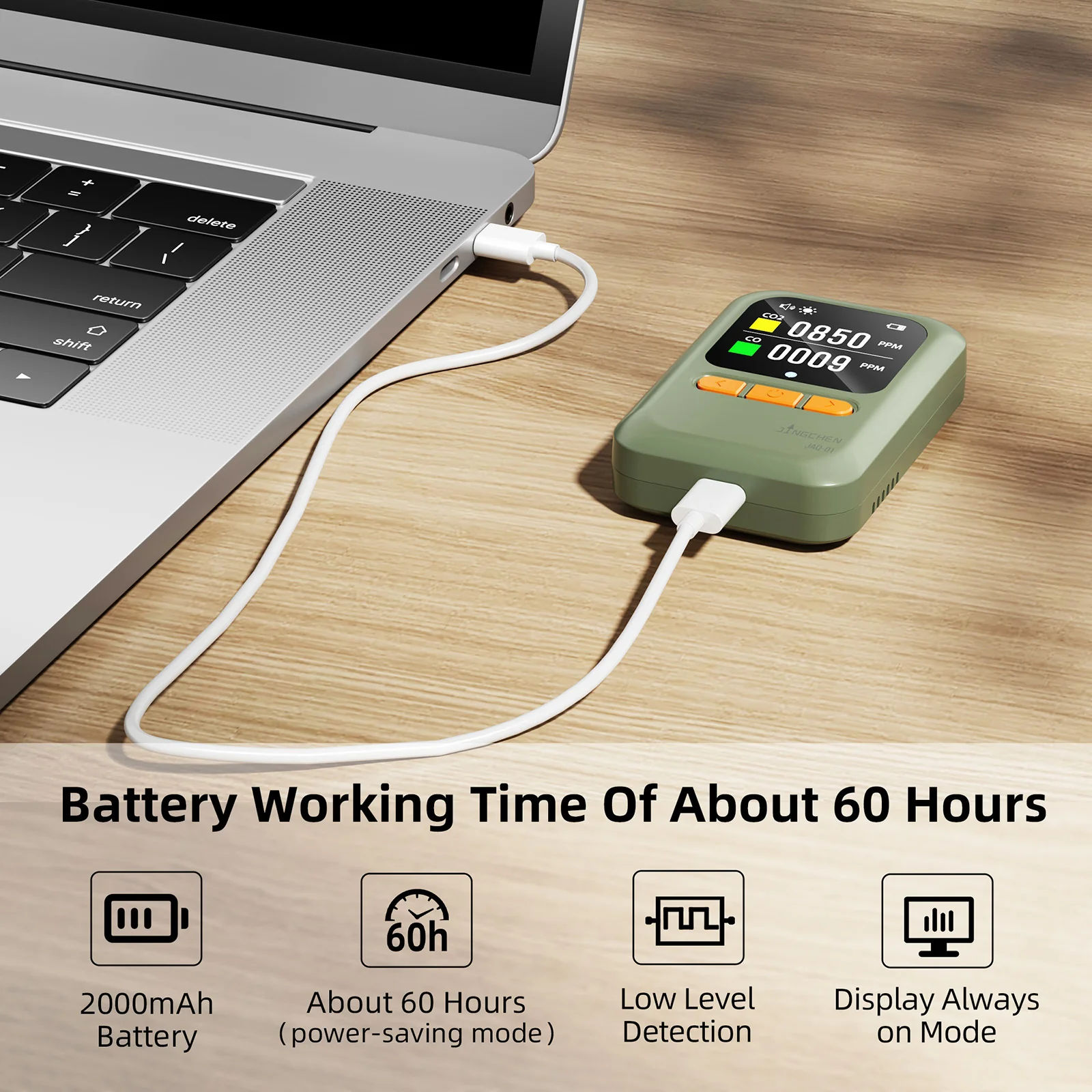

Battery: 2000mAh
Battery Charging: USB-C, DC 5V-1A
Charging Time: Approximately 2.5 Hours
Battery Life: About 60 hours in power saving mode (Depends on model, JQ-03 can be up to 120 hours)
Unit Lifetime: At least 7 Years with normal use

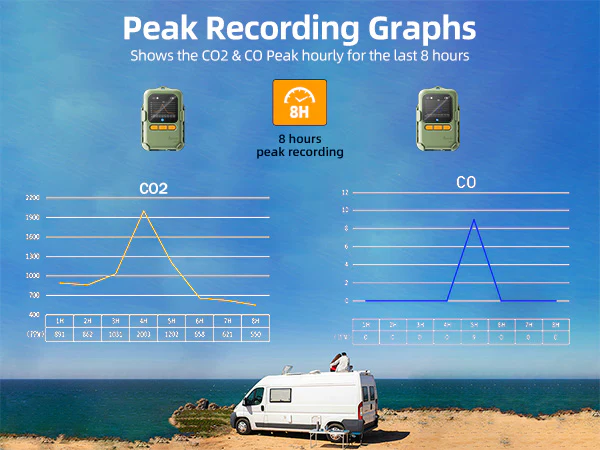

The unit also records peak measurements over time and displays the information on a graph.

- The JAQ-01 records and displays both CO2 and CO measurements
- The JAQ-03 records and displays only the CO measurements

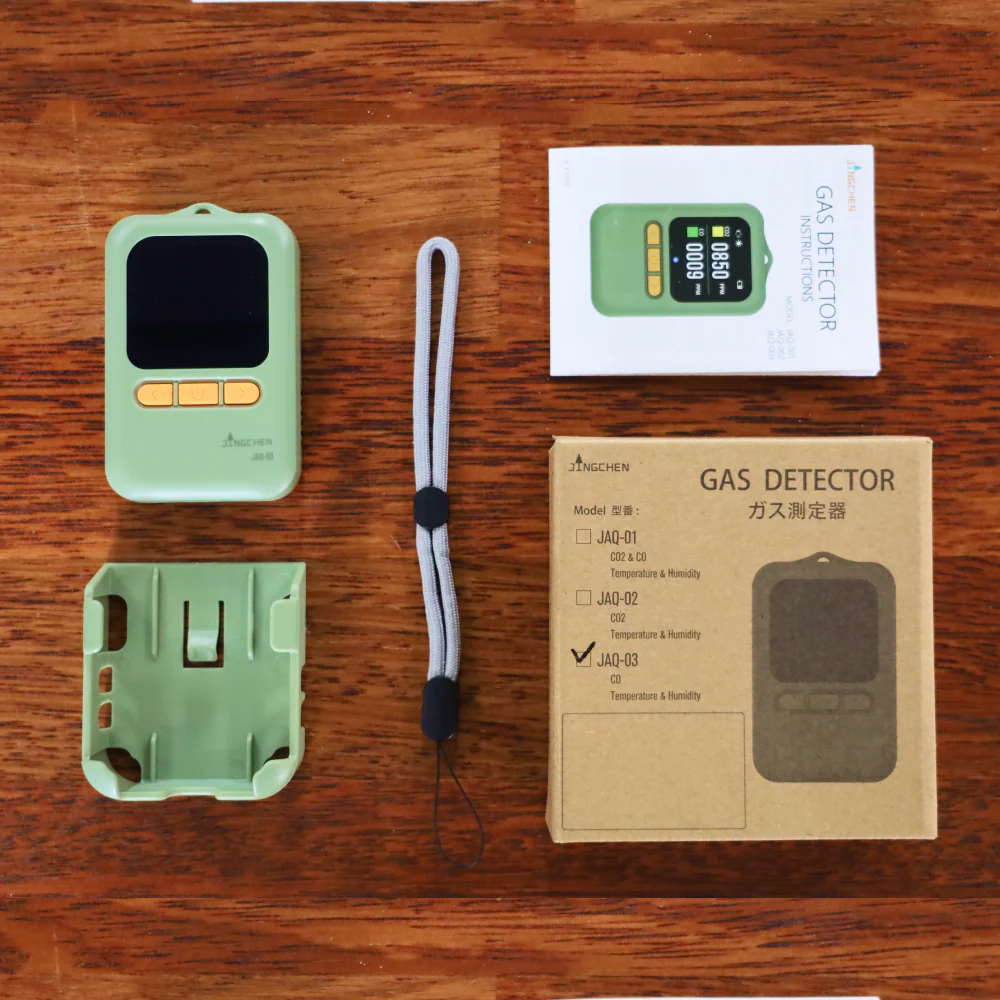

In The Box:

The Gas Detector Unit
USB C - Charging Cable
Instruction manual
Unit holder/cradle with separate adhesive mounting tape
Lanyard

Select Type

From $29.02

Original: $82.90

-65%

Electronic CO/CO2 Detector—

$82.90

$29.02

Product Information

Shipping & Returns

Description

When safety comes first, you need a reliable carbon monoxide detector in any piston-powered aircarft.

Customisable alarm levels - set at what gas concentrations alarms become audible.
Temperature and Humidity sesnors.
Mounting dock/cradle
Rechargeable

Two Models:

JAQ-01: Detects both CO2 & CO as well as Temperature & humidity
JAQ-03: Detects only CO as well as Temperature & humidity

Model Specifications:

Size: 56 x 88.5 x 20mm (without holder)
Weight: 85g (without holder)
Case Material: ABS Plastic
Operating Temperature Range: -10°C ~ 50°C
Operating Humidity Range: 10% ~ 95% Relative Humidity
Warranty: 2 Years

CO2 Sensor: NDIR (Only on JAQ-01)
CO2 Measurement Range: 400 ~ 5000 ppm
CO2 Accuracy: +/- 50ppm

CO Sensor: Electrochemical (Made in Japan)
Sesnor meets standard: UL2034
CO Measurement Range: 0 ~ 1000 ppm
CO Accuracy: +/- 15%

Temperature / Humidity Sensor: MEMS
Temperature Measurement Range: -40°C ~ +125°C
Temperature Accuracy: +/- 1°C

Temperature / Humidity Sensor: MEMS
Humidity Measurement Range: 0 ~ 100%RM
Humidity Accuracy: +/- 5%

Battery: 2000mAh
Battery Charging: USB-C, DC 5V-1A
Charging Time: Approximately 2.5 Hours
Battery Life: About 60 hours in power saving mode (Depends on model, JQ-03 can be up to 120 hours)
Unit Lifetime: At least 7 Years with normal use

The unit also records peak measurements over time and displays the information on a graph.

- The JAQ-01 records and displays both CO2 and CO measurements
- The JAQ-03 records and displays only the CO measurements

In The Box:

The Gas Detector Unit
USB C - Charging Cable
Instruction manual
Unit holder/cradle with separate adhesive mounting tape
Lanyard
